1984-1996 Corvette Wheels

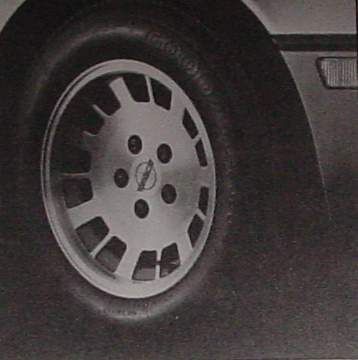

1984 (base)
front & rear 15"x7" 17mm
Goodyear Eagle GT, P215/65R-15

These wheels were in the catalouge, but were never installed on any new Corvette.

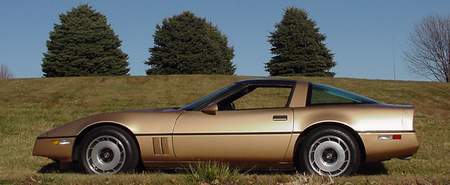

1984 (base)
front & rear 16"x8.5" 32mm (6.0" backspacing)
Goodyear Eagle VR50, P255/50VR-16

1984 (z51)
front 16"x8.5" 32mm (6.0" backspacing)
rear 16"x9.5" 38mm (6.7" backspacing)
Goodyear Eagle VR50, P255/50VR-16
1985 (base)
front & rear 16"x8.5" 32mm (6.0" backspacing)
Goodyear Eagle VR50, P255/50VR-16

1985 (z51)
front & rear 16"x9.5" 38mm (6.7" backspacing)
Goodyear Eagle VR50, P255/50VR-16

black painted centers
1986 (base)
front & rear 16"x8.5" 32mm (6.0" backspacing)
Goodyear Eagle VR50, P255/50VR-16

1986 (z51)
front & rear 16"x9.5" 38mm (6.7" backspacing)
Goodyear Eagle VR50, P255/50VR-16

aluminum centers

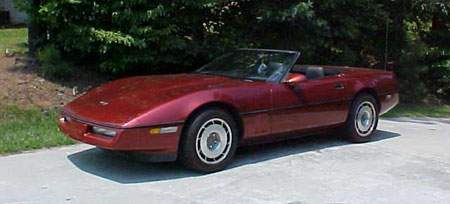

1987 (base)
front & rear 16"x8.5" 32mm (6.0" backspacing)
Goodyear Eagle VR50, P255/50VR-16

1987 (z51,z52)
front & rear 16"x9.5" 38mm (6.7" backspacing)
Goodyear Eagle VR50, P255/50VR-16

grey painted centers
1988 (base)
front & rear 16"x8.5" 50mm (6.7" backspacing)
Goodyear Eagle VR50, P255/50VR-16
1988-1989 Callaway (b2k)
???
???

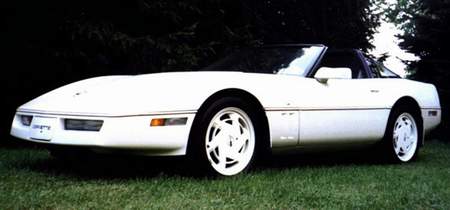

1988 35th Anniversary Edition
front & rear 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle ZR, P275/40ZR-17

White Wheels
1988 (z51,z52)
front & rear 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle ZR, P275/40ZR-17
1989 (all)
front & rear 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle ZR, P275/40ZR-17
1989 (pre production zr1)
front 17"x9.5" 56mm (7.4" backspacing)
Goodyear Gatorbacks, P275/40ZR-17
rear 17"x11" 36mm (7.4" backspacing)
Goodyear Gatorbacks, P315/35ZR-17
1990 (base)
front & rear 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle ZR, P275/40ZR-17
1990 (zr1)
front 17"x9.5" 56mm (7.4" backspacing)
Goodyear Gatorbacks, P275/40ZR-17
rear 17"x11" 36mm (7.4" backspacing)
Goodyear Gatorbacks, P315/35ZR-17

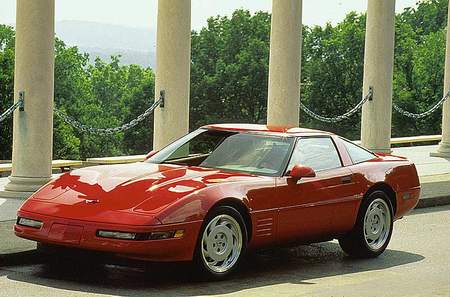

1991 (base)
front & rear 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle ???, P275/40ZR-17
1992 (base)
front & rear 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle GSC, P275/40ZR-17

"SAWBLADES" with cast surface
1991 (zr1)
front 17"x9.5" 56mm (7.4" backspacing)
Goodyear Gatorbacks, P275/40ZR-17
rear 17"x11" 36mm (7.4" backspacing)
Goodyear Gatorbacks, P315/35ZR-17
1992 (zr1)
front 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle GSC, P275/40ZR-17
rear 17"x11" 36mm (7.4" backspacing)
Goodyear Eagle GSC, P315/35ZR-17

"SAWBLADES" with cast surface

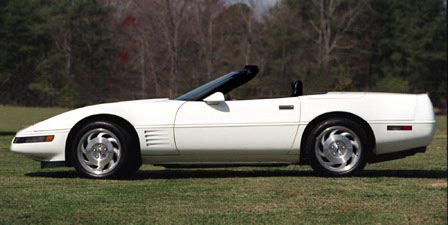

1993-1996 (base)
front 17"x8.5" 56mm (6.9" backspacing)
Goodyear Eagle GSC, P255/45ZR-17
rear 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle GSC, P285/40ZR-17
1993-1995 (z07)
front & rear 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle GSC, P275/40ZR-17
1996 (z51)
front & rear 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle GSC, P275/40ZR-17

"SAWBLADES" with machined surface

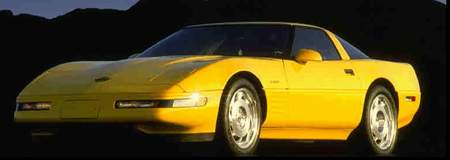

1993 (zr1)
front 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle GSC, P275/40ZR-17
rear 17"x11" 36mm (7.4" backspacing)
Goodyear Eagle GSC, P315/35ZR-17

"SAWBLADES" with machined surface
1994-1995 (zr1)
front 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle GSC, P275/40ZR-17
rear 17"x11" 36mm (7.4" backspacing)
Goodyear Eagle GSC, P315/35ZR-17
1995 pace car
front & rear 17"x9.5" 56mm (7.4" backspacing)
P275/40ZR-17 B/W Tires
1996 Collectors Edition (base)
front 17"x8.5" 56mm (6.9" backspacing)
Goodyear Eagle GSC, P255/45ZR-17
rear 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle GSC, P285/40ZR-17

1996 Collectors Edition (z51)
front & rear 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle GSC, P275/40ZR-17
1996 Grand Sport (coupé)
front 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle GSC, P275/40ZR-17
rear 17"x11" 50mm (7.9" backspacing)
Goodyear Eagle GSC, P315/35ZR-17

1996 Grand Sport (convert.)
front 17"x8.5" 56mm (6.9" backspacing)
Goodyear Eagle GSC, P255/40ZR-17
rear 17"x9.5" 56mm (7.4" backspacing)
Goodyear Eagle GSC, P285/40ZR-17

Additional information

Link to a 1984-1996 Corvette Suspension Chart

All 1984-1996 Corvette wheels have 5 bolts and the bolt circle diameter is 4.75"

To use 1988-1996 wheels on a 1984-1987 Corvette you need 0.75" spacers.

The 11" wide rear zr1 wheels will fit 1984-1987 Corvettes without spacers.
The 1984 and 1985 wheels were made from an aluminum casting that do not shine much when polished.

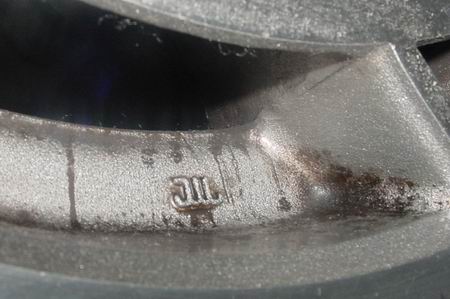

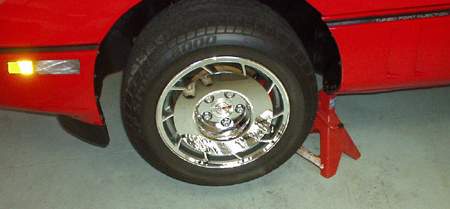

Enkei produced the 1986 and 1987 wheels for GM and they were made of an aluminum that could be polished to a high luster. These Enkei produced wheels also were slightly larger on the inside, which means you can use the '88 and later 2-piston front brake caliper with a 13" rotor. The Enkei produced wheel can be identified by a small symbol in one of the slotted radial wheel vents which looks like an "m" grafted to an upside down "J".
